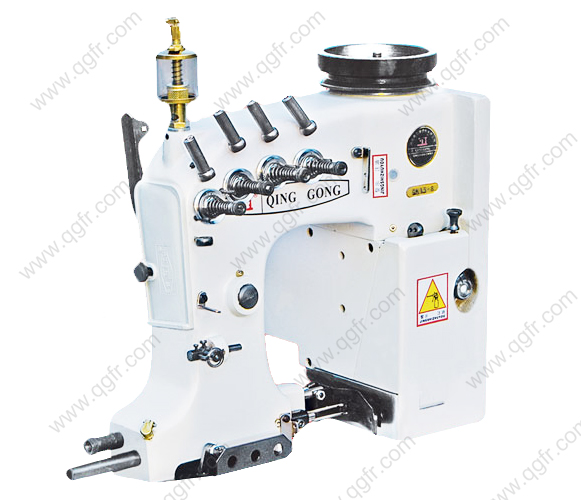

GK35-8/8A Double Needles Sewing Machine
classification:
product description
GK35-8 Double Needles Bag Closing Machine:Two-needle machine for plain closing of all kinds of filled bags,this model is a variation of Model GK35-2C, and is recommended to prevent leakage of the product by providing strong double seams.
1.    Start-stop: actuated by foot switch of column
2.    Thread chain cutter: by continuously driven nibbler knives
3.    Standard needle: DN*2#
4.    Stitch length: adjustable from 6.5-11 mm, standard setting 8 mm
5.    Needle distance: 6 mm, staggered
6.    Speed: up to 2000 RPM, depending on sewing material and operation
7.    As our standard bag closers do not include any electric components, they can be installed in ex-proof locations.

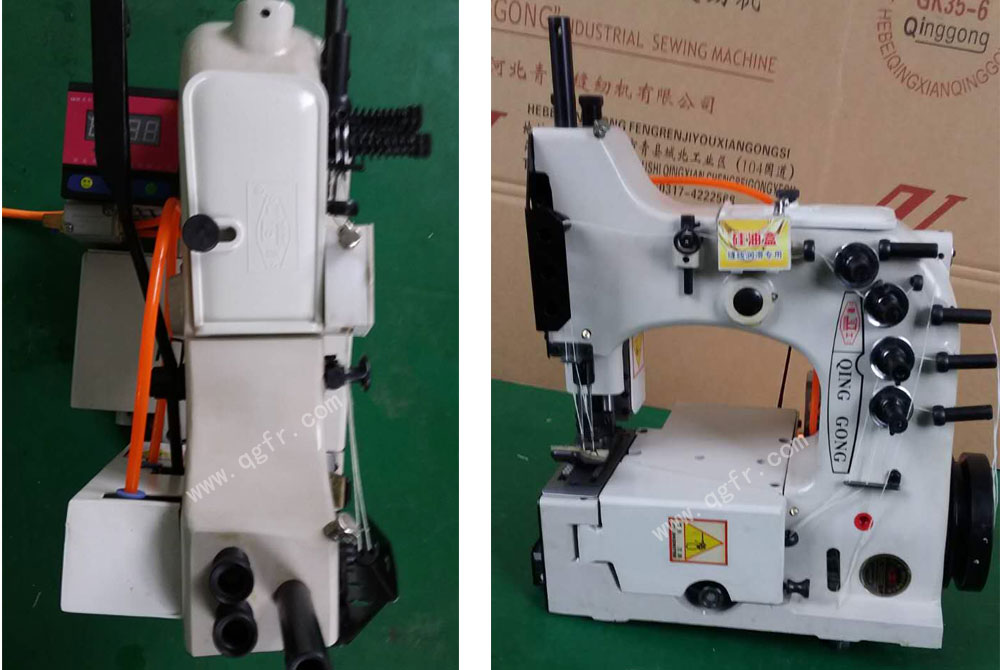

GK35-8A Double Needles Automatic Bag Closing Machine: The same with GK35-8 expect that equipped with photoswitch and electro-pneumatically operated scissors which can produce automatic start-stop and automatic thread cutting similar with GK35-6A.

Technical Parameters
Speed (max.) 2000r.p.m.
Sewing thickness 8mm
Stitch length 6.5-11mm
Needles distance 6mm
Stitch type double threads chain 401
Thread cotton, polyester 21S/5,21S/3
Presser foot lift 11-16mm
Needle type DN*2#
Pulley diameter φ 114mm
Power 370w
Weight 35KG
Dimension 50cm * 50cm * 35cm
