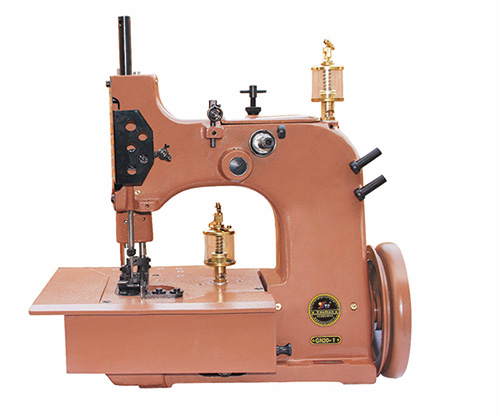

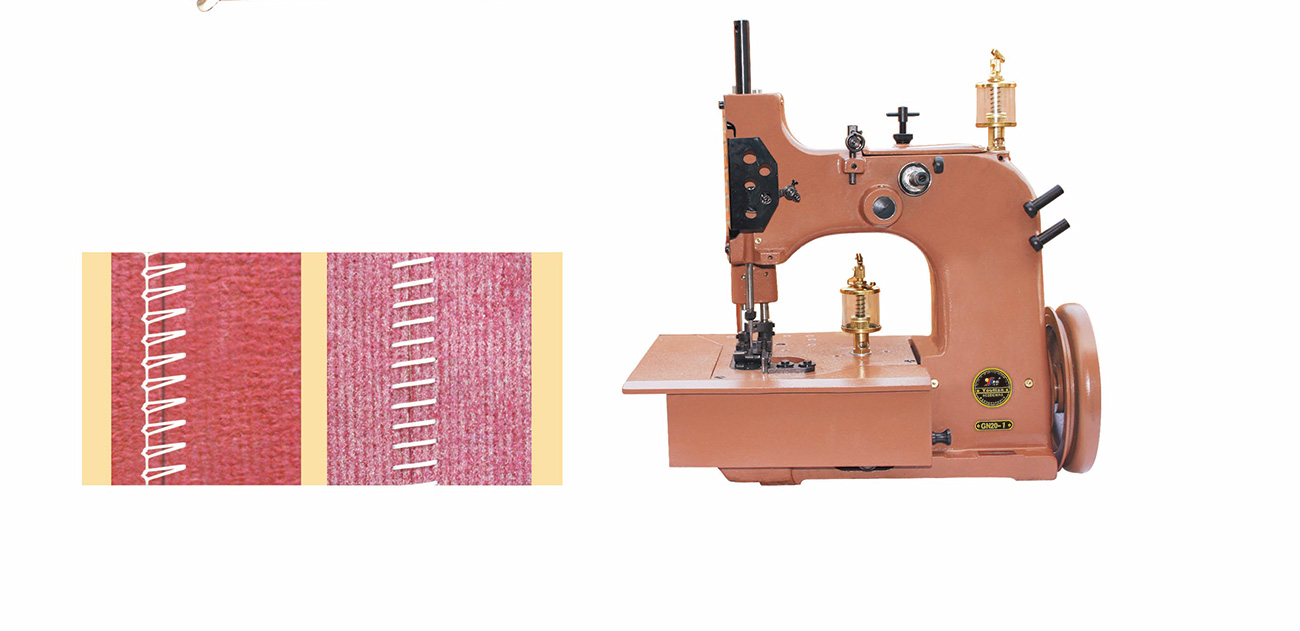

GN20-1 Piece End Joining Machine
product description
GN20-1 Piece End Joining Machine: single needle, single thread piece-end joining sewing machine. It is designed for secondary joining by sewing together the ends of all kinds of materials such as fabric rolls and felt type products (before processing in Dyeing and Printing works) and even on the heaviest carpeting with thick backing.
For secondary joining by sewing together the ends of all kinds of materials such as fabric rolls and felt type products
Needle: 1;
Threads: 1;
Stitch range: 7-16mm;
Overedge width:15mm (10mm and 18mm is available)
Max. speed: 1400rpm; Material thickness: Up to 16mm
For secondary joining by sewing together the ends of all kinds of materials such as fabric rolls and felt type products
Needle: 1;
Threads: 1;
Stitch range: 7-16mm;
Overedge width:15mm (10mm and 18mm is available)
Max. speed: 1400rpm; Material thickness: Up to 16mm
Technical Parameters
| Speed (max.) | 1400r/min |
| Sewing thickness | 10mm |
| Needle type | GN20-230 |
| Overedge width | 10-15mm |
| Stitch range | 7-16mm |
| Motor | 370W |
| Net weight | 35kg |
| Dimension | 445×245×375mm |
