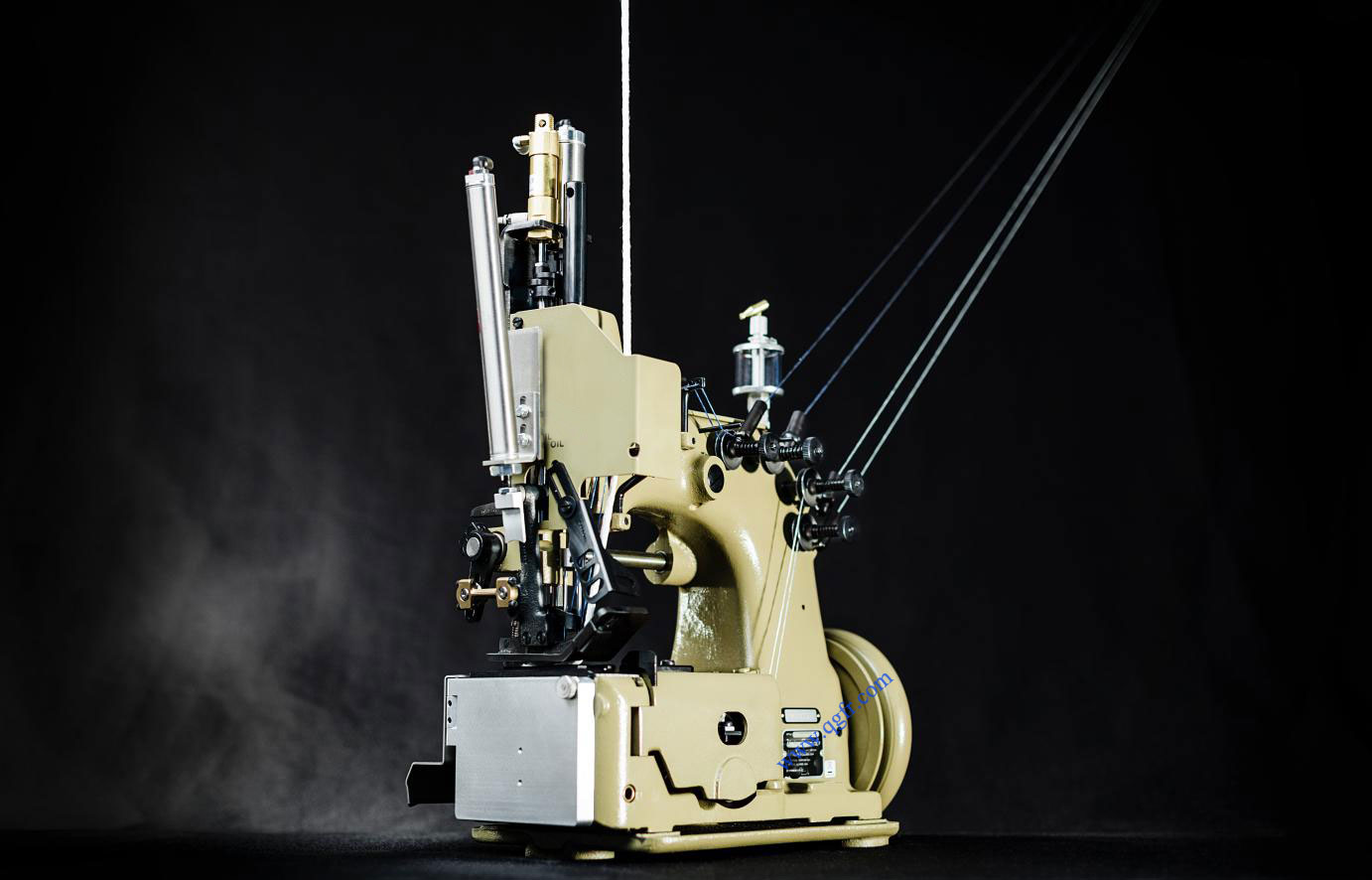

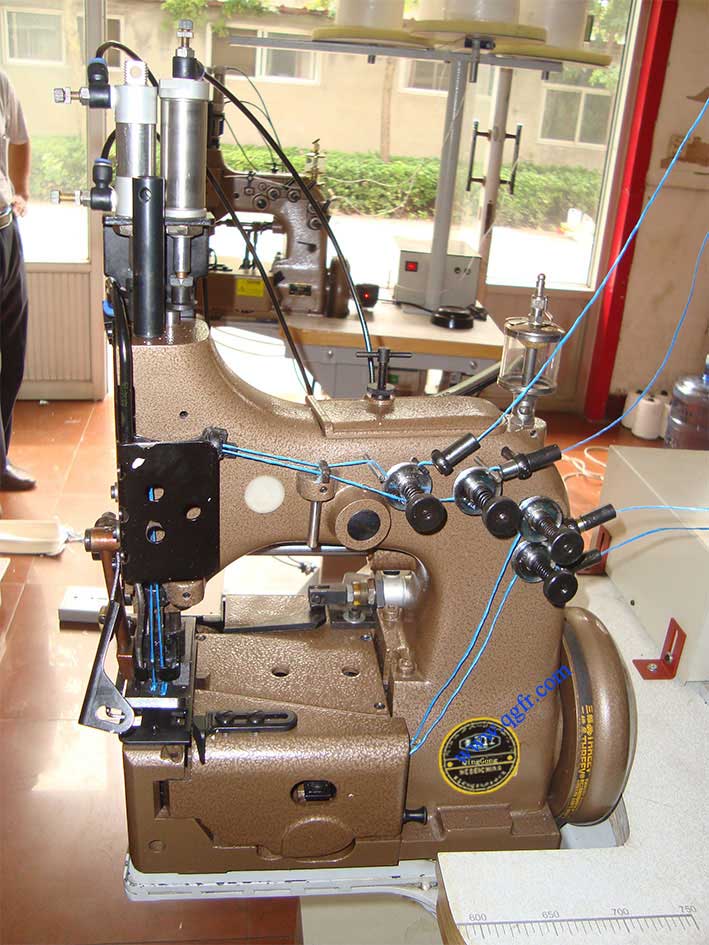

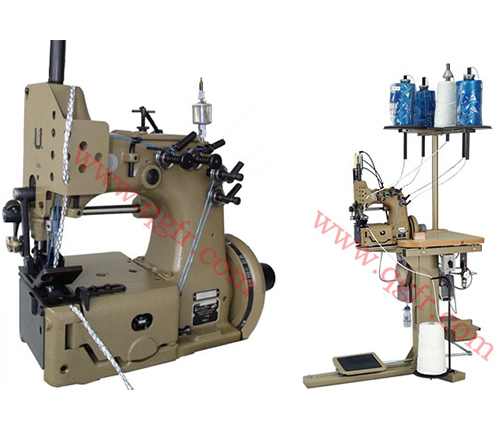

80700 Heavy duty FIBC sewing machine: Heavy duty two needle double locked stitch sewing machine with top and bottom feed. Universally applicable for all seams on container bags, inserting top covers and attaching filling and discharging tubes on container bags. Easy crossing of side seams and belts. Upper feed drive in housing, therefore maximum capacity under the arm. Electro-pneumatically operated presser foot and upper feed dog lifter. Pneumatic presser foot spring. Guides for filler cord from the top and / or below for sealing the needle punctures. With built-in elctro-pneumatically operated hot thread chain cutter left of the needle from below for separating the thread chain.

1. Stitches/min.：1400
2. Stitch range：6.00mm - 12.00mm
3. Standard setting：10.00mm
4. Capacity under presser foot：18.00mm
5. Thread chain and tape cutter：Hot thread chain cutter left of the needle
6. Bag material：PP-woven-fabric，PP-laminated woven-fabric，Felt
7. Lubrication：Manual lubrication
8. Standard needle：9848G300/120
9. Stitch types：(401.401)
10. Feed type：Top and bottom feed
11. Closures：Plain seam
12. Bag types：Single loop bag，Double loop bag，Container bag，Baffle-Bag (Q-Bag)
13. Material thickness：100-200 g/m²，above 200 g/m²
14. Needles：2
15. Thread：2500-4000 Den
16. Packing mass (L/W/H) ：46cm/47cm/61cm
17. Net weight ：44kg
18. Gross weight ：49kg
